• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 238689

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 120; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

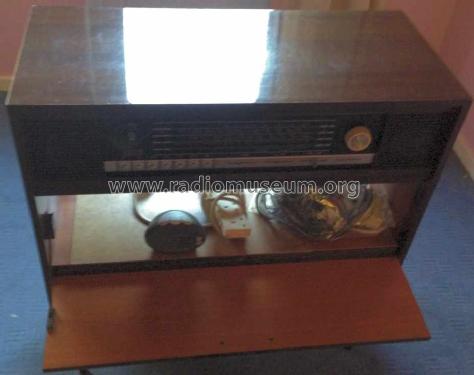

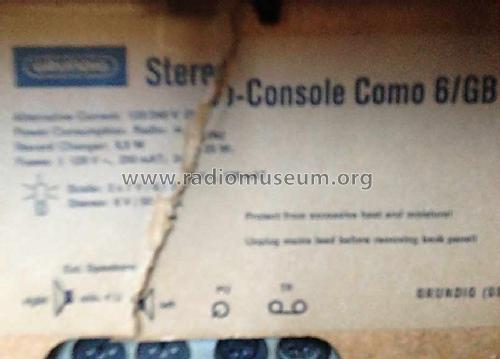

• Model: Stereo-Console Como 6/GB Ch= RC400MS - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 780 x 820 x 360 mm / 30.7 x 32.3 x 14.2 inch

• Notes

• Export model of Stereo-Konzertschrank Como 6.
  FM stereo decoder built in.
  See also the earlier domestic model Como 5.
  Date & Data confirmed from actual equipment.

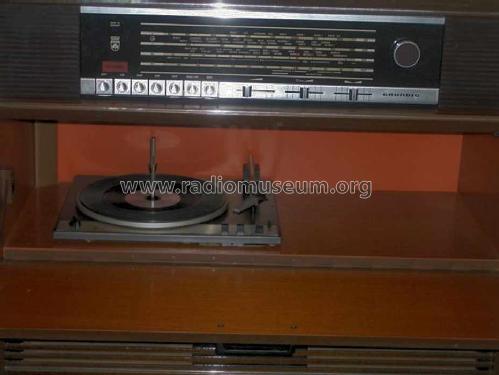

  Record changer is Grundig Automatic 60, 4 speed, Philips cartridge.
  Speakers are elliptical 26 x 15 cms, Grundig, 4 ohm, 4 Watt

• Author
• Model page created by Michael Watterson. See "Data change" for further contributors.

• Other Models

• Here you find 6212 models, 5442 with images and 4209 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
