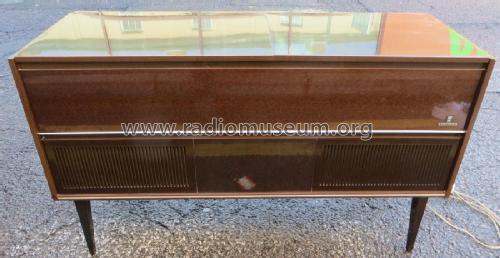

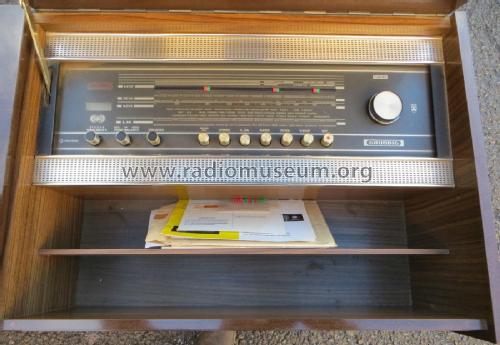

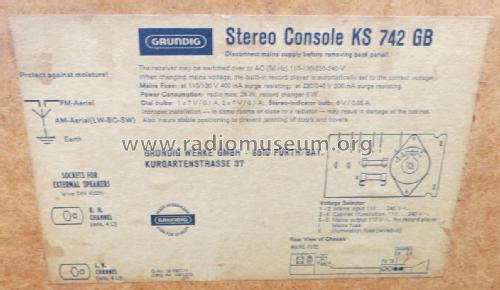

Stereo Console KS742GB
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 265232
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Number of Transistors
- 21
- Semiconductors
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo Console KS742GB - Grundig Radio-Vertrieb, RVF,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1210 x 750 x 420 mm / 47.6 x 29.5 x 16.5 inch
- Notes
-
Export model for the United Kingdom.
See also similar models KS742 with record changer Grundig Automatic 36, and KS742 with record changer Philips AG1035 (schematic available there).
- Author
- Model page created by a member from A. See "Data change" for further contributors.
