Stereo Console Mandello d/U

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1967 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 302922
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); Export model
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Console Mandello d/U - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 46.5 x 30.5 x 14.25 inch / 1181 x 775 x 362 mm
  • Notes

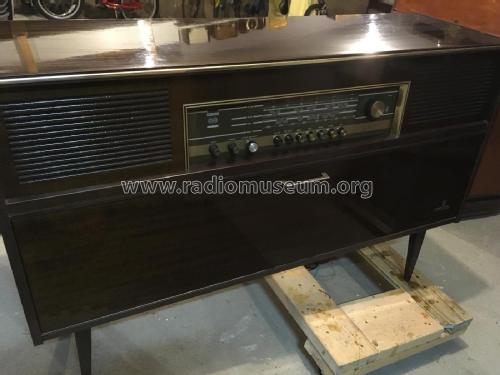

  • Stereo Console Mandello d/U is an export model for the USA. It has a 4-speed Grundig Stereo Automatic record changer.

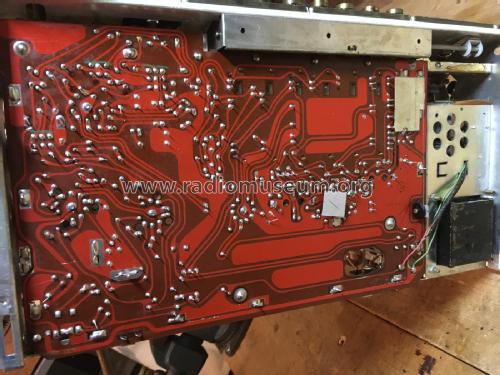

    Receiver chassis = HF45U, see e.g. model Locarno 1/U
    Optional MPX stereo decoder 6U/C.
    Connector for preamplifier MV3.

    See also domestic model Mandello c/St with LW replacing the second SW band, and FM range up to 104 MHz.

  • Author
  • Model page created by Keith Ferguson. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Stereo Console Mandello d/U is part of the collections of the following members.

 Forum

Forum contributions about this model: Grundig Radio-: Stereo Console Mandello d/U

Threads: 1 | Posts: 18

Restoring Grundig Mandello d//U. Experiencing a rhythmic thumping sound but only on FM. Sound goes away when bass is reduced. Thumping not in time with the bass, but has it's own rhythm. Video of the phenomenon here.

Keith Ferguson, 31.Jul.18
