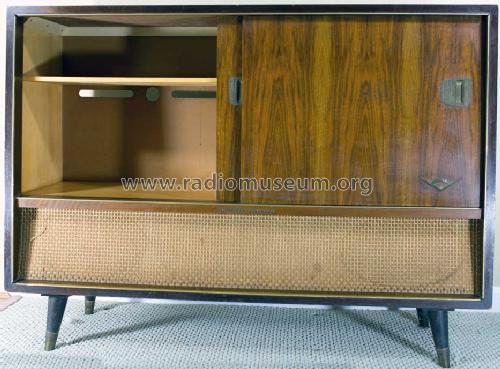

Majestic Stereo Console SO151US

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 191112
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 125 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Majestic Stereo Console SO151US - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1130 x 840 x 430 mm / 44.5 x 33.1 x 16.9 inch
  • Notes
  • Most probably Phono-Chassis = Telefunken TW501/g. The Grundig model Stereo Console SO 151 US has a sticker which says "For 115 Volts (110 up to 125 Volts) AC only. Fuse: 3 AG 1A 58 (1 amp. slow blow). For use on 220 Volts remove 110 V tapping lead from fuse holder andd connect 220 V tapping lead to this free tag. The 220 V tappng you will find after the screening can of the power transformer has been dismounted. ... Special instructions are given for the record changer."
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
