Stereo HiFi System CCD 600

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1988 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 295787

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

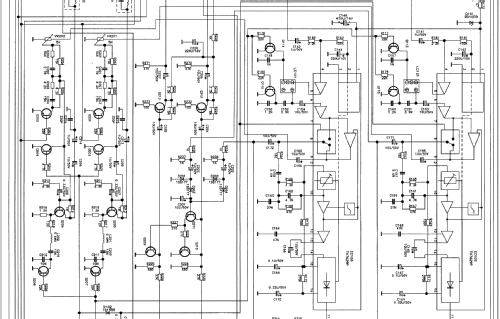

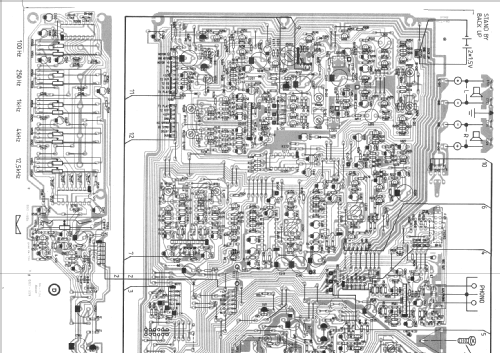

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (100 W max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Stereo HiFi System CCD 600 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Notes

• Stereo HiFi System 600.  Verstärkerteil: 2x 25 Watt Sinus und 2x 50 Watt Musikleistung mit CD-Spieler und Doppeldeck-Cassettenrecorder.

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
