Stereo Master 5299 WE

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1961/1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 291087
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 13
  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
  • Tuned circuits
  • 9 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 14 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Master 5299 WE - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 670 x 280 x 275 mm / 26.4 x 11 x 10.8 inch
  • Notes

  • Grundig Stereo Master 5299 WE is a tropicalized export model.

    Tuning ranges:
    FM 87 ... 108 MHz
    MW 510 ... 1620 kHz
    LW 145 ... 350 kHz
    SW1 3,15 ... 8,8 MHz
    SW2 8,6 ... 22,5 MHz

    4 tone controls, Wunschklang-Register
    Transistorized Stereo preamplifier for magnetic PU

    See also the German domestic model Steuergerät 5299 Stereo and the export variant
    Majestic 5299U/S for the U.S.A.

  • Net weight (2.2 lb = 1 kg)
  • 13 kg / 28 lb 10.1 oz (28.634 lb)
  • Mentioned in

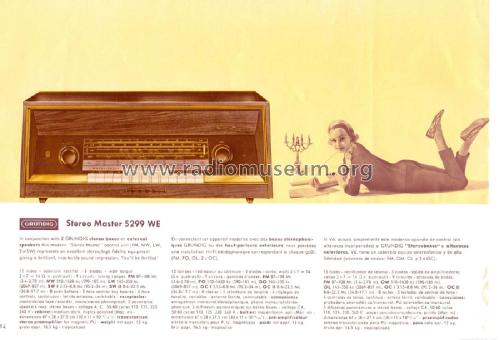

  • -- Original prospect or advert (Grundig High Fidelity Table Models-Catalogue, GR.724/116218/75)
