Stereo tuner T 3000

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135848

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

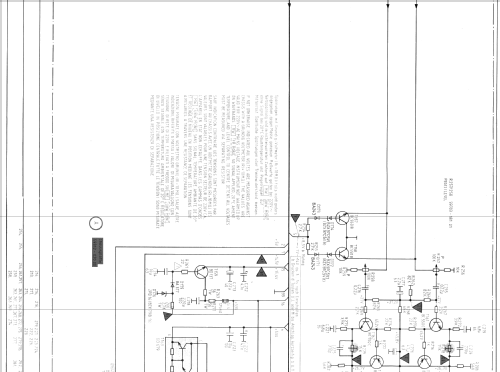

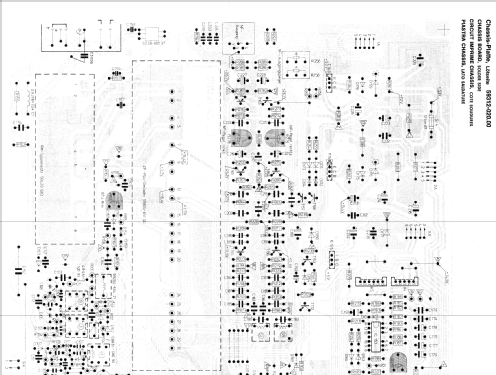

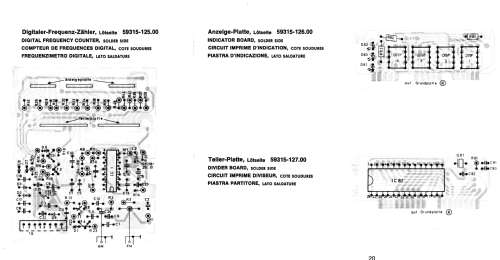

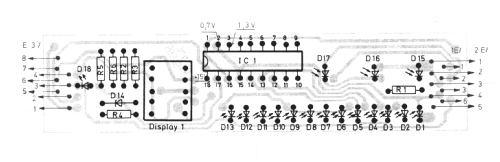

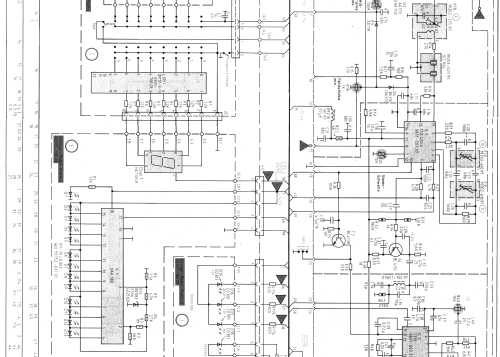

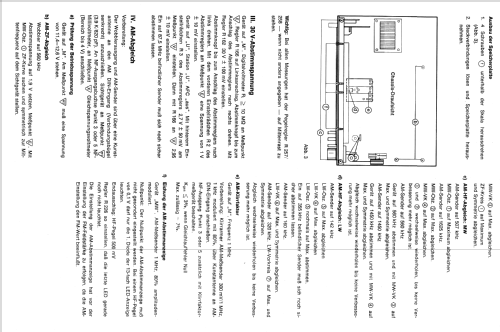

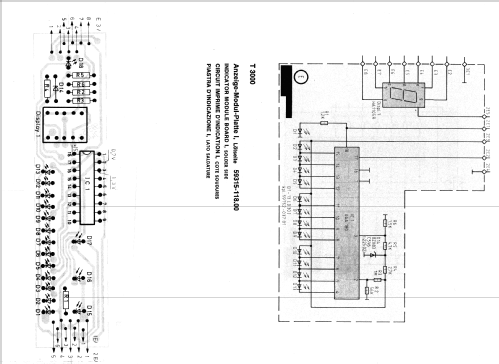

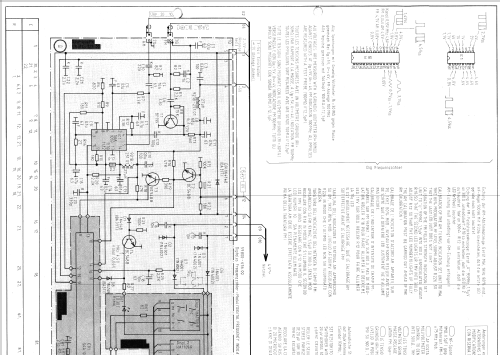

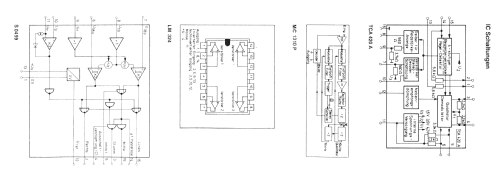

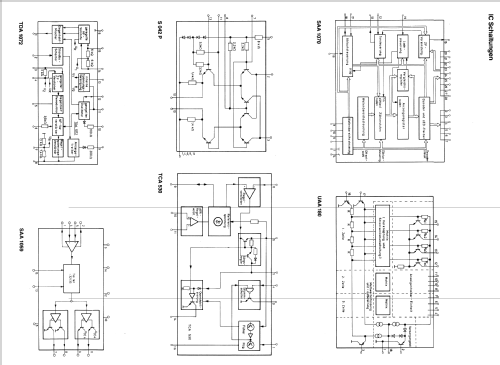

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• S042 TCA420 TDA1072 SAA1059 SAA1070 DM12-9-13 UAA180 LM324 S0459 MC1310 TCA530 MC78M05CT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo tuner T 3000 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 110 x 330 mm / 17.7 x 4.3 x 13 inch

• Notes

• Stereo Tuner, 7 FM-Stationen speicherbar plus Handabstimmung.

  Analoge Abstimmung, mit digitaler Frequenzanzeige.

  An Pin 8 der Ausgangsbuchse liegt eine +15V Steuerspannung zum Einschalten eines passenden Grundig Verstärkers.
