Stereomeister 15H Nussbaum

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25652

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

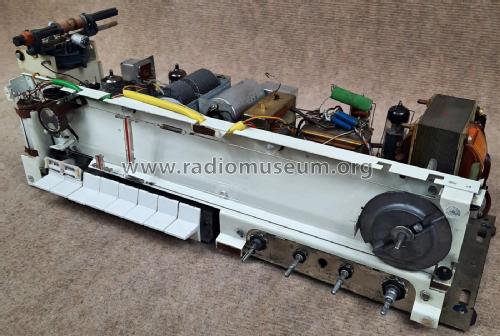

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC808 EM87 ECC808 ECLL800 ECLL800

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereomeister 15H [Nussbaum] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 230 x 220 mm / 22.8 x 9.1 x 8.7 inch

• Notes
• Dreh- und abschaltbare Ferritantenne; Stereo-Decoder 5 (mit ECC81 und OC79) eingebaut; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8 W. Externer Hallgeber kann angeschlossen werden.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 680.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
