• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1990 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 133039

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

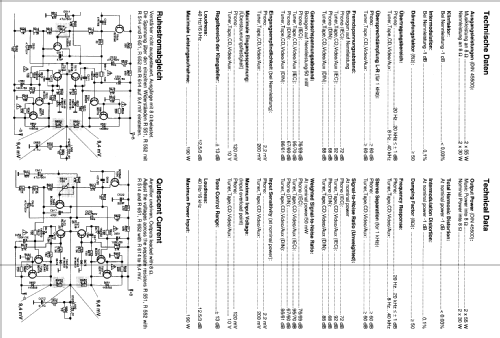

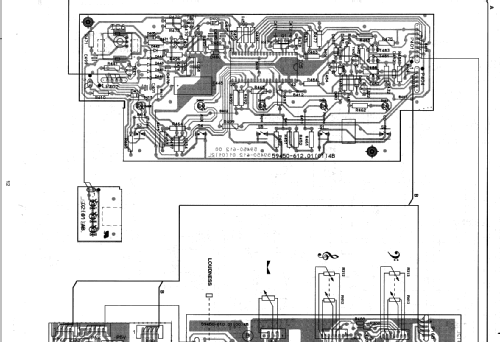

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 45

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Power out
• 110 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

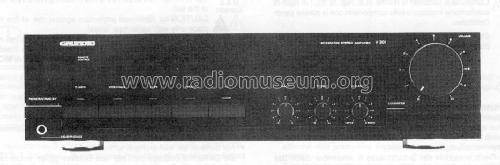

• Model: Stereoverstärker V-301 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Notes
• 4 IC; Stereoverstärker V301 mit 2 x 55 Watt Musikleistung.

• Mentioned in

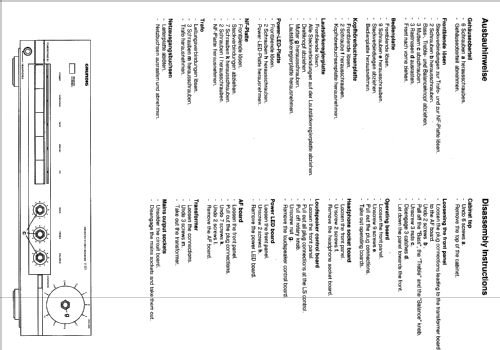

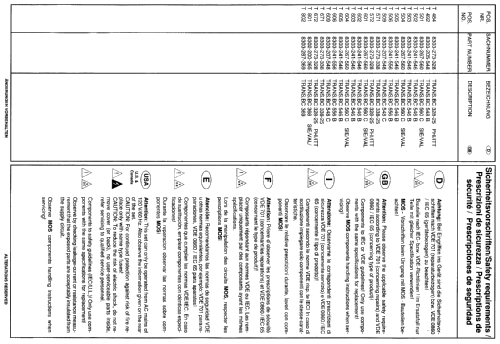

• Original Grundig Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
