• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1986 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 133038

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

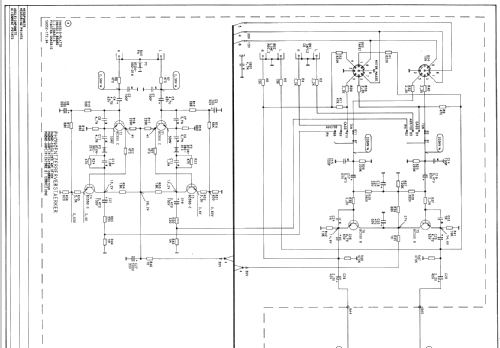

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 33

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

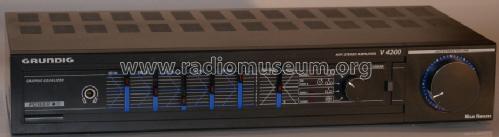

• Model: Stereoverstärker V 4200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 75 x 210 mm / 17.1 x 3 x 8.3 inch

• Notes

• Stereoverstärker V4200 mit 2 x 50 Watt Musikleistung.
  + 5 Band Graphic Equalizer.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in

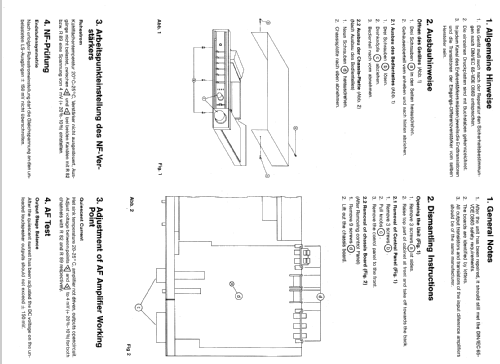

• Original Grundig Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
