• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177106

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Number of Transistors
• 38

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 45 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

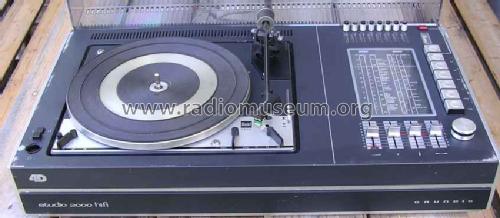

• Model: Studio 2000A HiFi [PW= 1215] - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 650 x 180 x 390 mm / 25.6 x 7.1 x 15.4 inch

• Notes
• HIFI-Stereo-Steuergerät
  NF-Verstärker mit 2 Endstufen zu je 22,5W (Sinus)
  Phono-Chassis = Dual 1215.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karl Reiter. See "Data change" for further contributors.
