• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158239

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 8 W (unknown quality)

• from Radiomuseum.org
• Model: Studio 260U - Grundig Radio-Vertrieb, RVF,

• Dimensions (WHD)
• 26.25 x 8.5 x 15.25 inch / 667 x 216 x 387 mm

• Notes

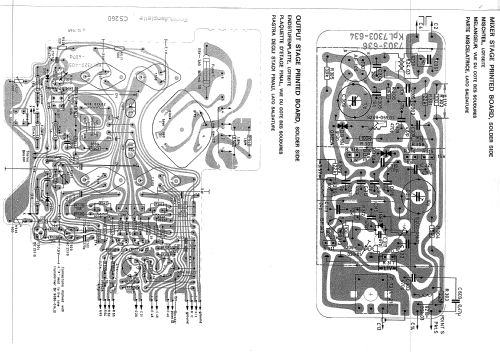

• Das Steuergerät Studio 260U basiert auf dem Chassis CS260 U/WE.

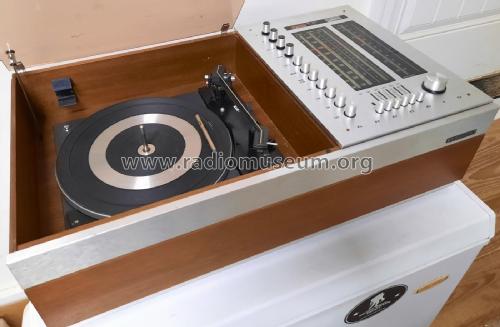

  Dual 1210 turntable

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.

• Other Models

• Here you find 6208 models, 5433 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
