Studio RPC 2500

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1981/1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234318

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

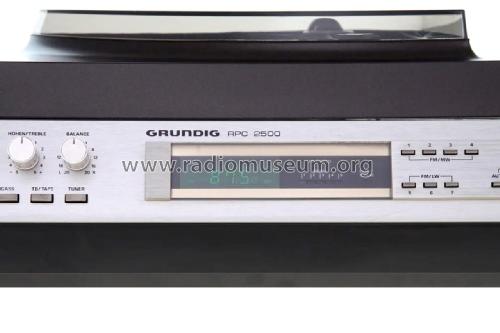

• Picture

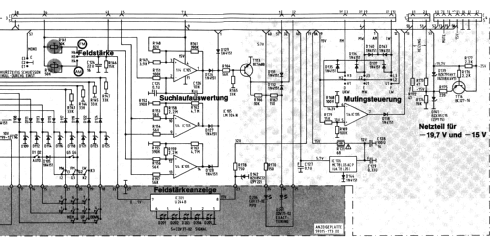

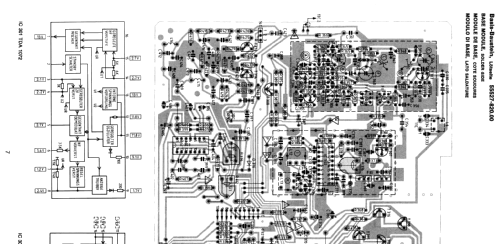

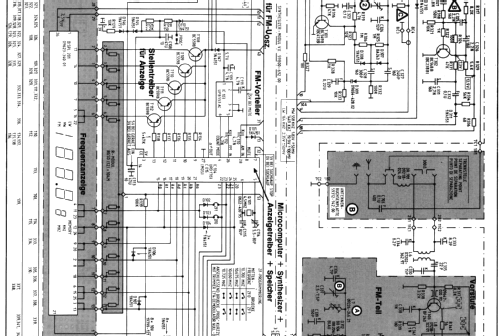

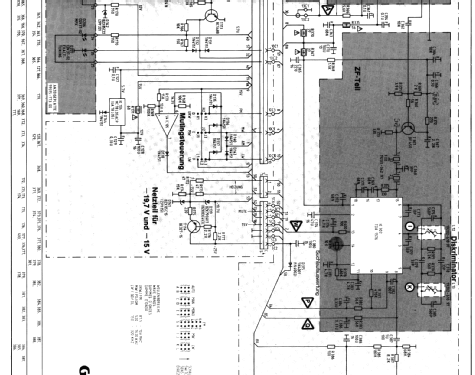

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 47

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player + Cassette Recorder; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Studio RPC 2500 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Notes

• Plattenspieler mit magnetischem Tonabnehmer, Sendersuchlauf Microprozessor gesteuert, 47 Transistoren und 11IC´s.

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
