Super Color 1621

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1977 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 211501

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

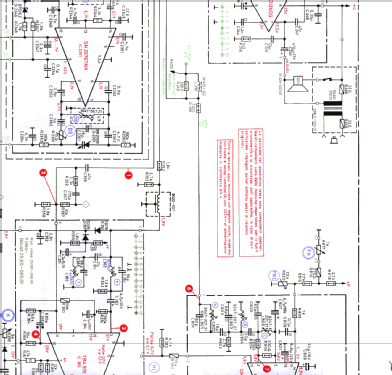

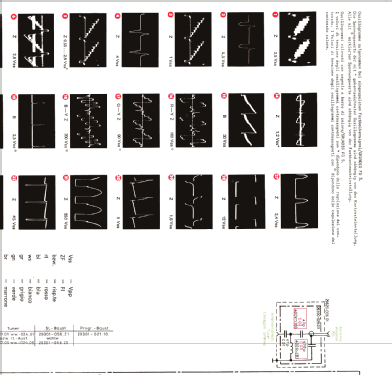

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 420ALB22

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Super Color 1621 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Notes

• 16"/~36 cm PAL Farb TV mit elektronischem 8 Sensorprogrammtasten CCIR B/G Tuner.
  Farben Rot und Gelb bekannt.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
