Super Color 6011

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973/1974

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 128365

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

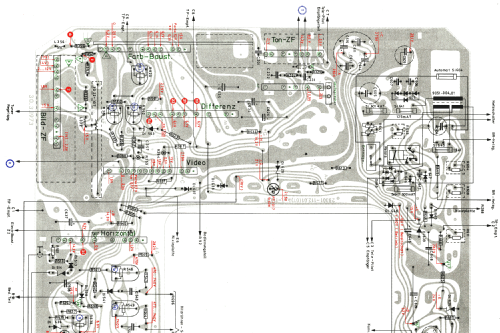

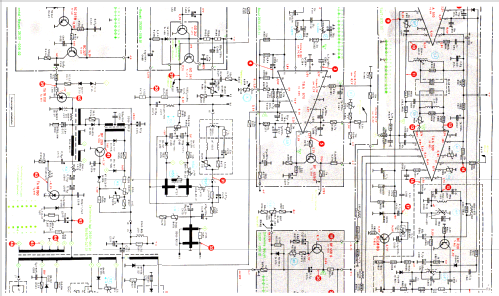

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• unknown_Tube A66-140X

• Number of Transistors
• 42

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Color 6011 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 760 x 520 x 460 mm / 29.9 x 20.5 x 18.1 inch

• Notes
• 66 cm Farbfernseh-Tischgerät, 13 ICs, 101 Dioden, 2 Thyristoren, Leuchtzifferröhre, 1 Hochsp.- Kaskade, VHF/UHF-Tuner, Fernbedienung Tele-Pilot.

• Net weight (2.2 lb = 1 kg)
• 38 kg / 83 lb 11.2 oz (83.7 lb)

• Mentioned in
• -- Original-techn. papers. (Weiler Angebot 1973/74)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
