• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 128367

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

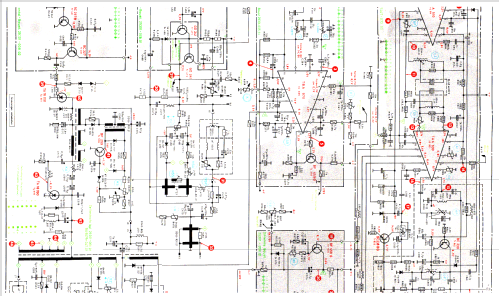

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes

• Number of Transistors
• 42

• Semiconductors
• AC176 AF106 AF106 AF280 AF379 AF379 BC237 BC238 BC238 BC238 BC238 BC238 BC238 BC238 BC238 BC238 BC238 BC238 BC238 BC238 BC308 BC308 BC308 BC308 BC308 BC327 BC337 BD135 BF199 BF259 BF459 BF459 BF459 BF459 BSV57 GD241_TI GD241_TI PT1017 SFE232 SFE232 SFE232 TE404 SN29722 SN29723 SN7442 SN7472 SN7490 TAA550 TAA630 TBA120S TBA440 TBA510 TBA800 TBA920 TBA970 NT9937 NT9937 NT9938 NT9951 1N4001 1N4001 1N4002 1N4002 1N4004 AA119 AA119 B250C1400 B30C350 BA157 16090 16091 16092 16093

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Color 6031 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 760 x 520 x 460 mm / 29.9 x 20.5 x 18.1 inch

• Notes
• • 66 cm Farbfernseh-Tischgerät
  • 13 ICs
  • 101 Dioden
  • 2 Thyristoren
  • Leuchtzifferröhre
  • 1 Hochsp.- Kaskade
  • VHF/UHF-Tuner
  • Fernsteuerung Tele-Pilot
  • HiFi/TB-Adapter
  • Zusatzlautsprecher-Adapter
  • Kleinhörer-Adapter.

• Net weight (2.2 lb = 1 kg)
• 38 kg / 83 lb 11.2 oz (83.7 lb)

• Mentioned in
• -- Original-techn. papers. (Weiler Angebot 1973/74)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
