Super Color 6062

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1974 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 303860
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

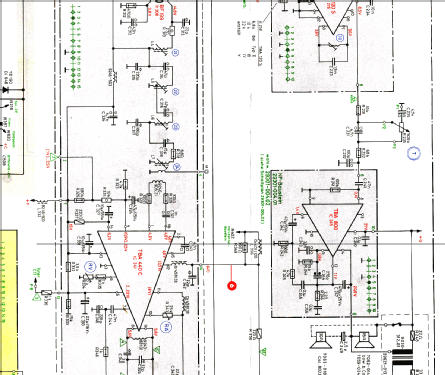

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 3 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Super Color 6062 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

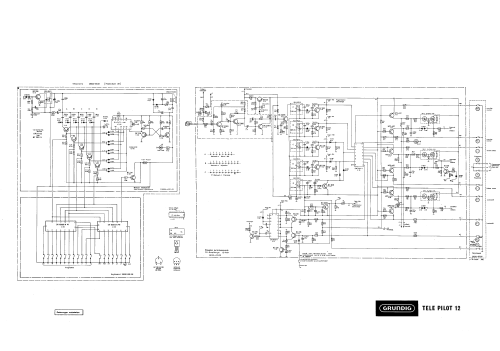

  • 66 cm Tisch Farbfernsehgerät Super Color 6662 mit Allbereichstuner, Multi- Modul- Baukasten- System. Drahtlose Ultraschall- Fernsteuerung Tele- Pilot 12. Digitale - Programmanzeige. Zentralstecker für Grundig Diagnose Adapter. Anschluss für Kopfhörer, Gehäuselautsprecher kann abgeschaltet werden.

  • Literature/Schematics (2)
  • -- Original-techn. papers.
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
