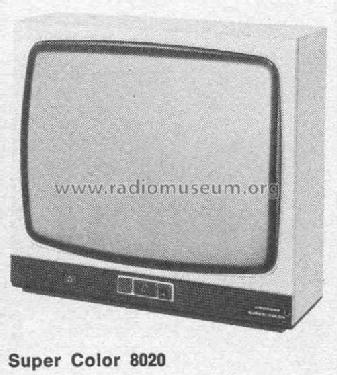

Super Color 8020
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1973/1974
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 128699
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

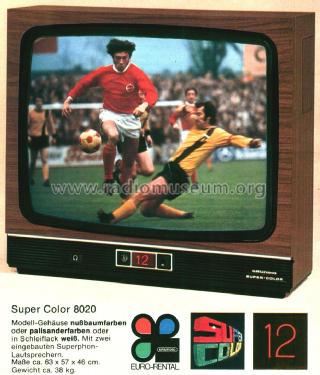

Q: Grundig, Grundig Revue '74
Weiler Katalog 1973

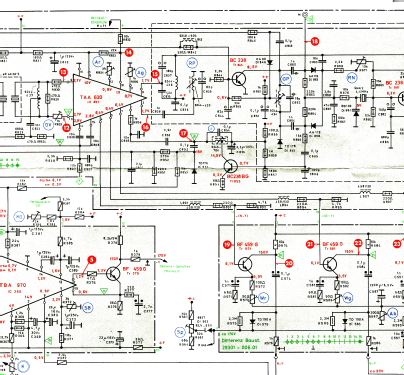

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Valves / Tubes
- unknown_Tube A66-140X
- Number of Transistors
- 64
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Color 8020 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 630 x 570 x 460 mm / 24.8 x 22.4 x 18.1 inch
- Notes
- 66 cm Farbfernseh-Tischgerät, 19 ICs, 160 Dioden, 2 Thyristoren, Leuchtzifferröhre, 1 Hochsp.- Kaskade, VHF/UHF-Tuner, Fernsteuerung Tele-Pilot 12, Kopfhöreranschluß.
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- Mentioned in
- -- Original-techn. papers. (Weiler Angebot 1973/74)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
