• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973/1974

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 134463

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

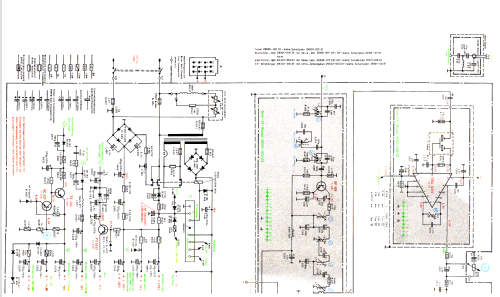

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A66-140X

• Number of Transistors
• 42

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Color 8051 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 570 x 460 mm / 24.8 x 22.4 x 18.1 inch

• Notes
• 13 IC
  Grundig Super Color 8051, VHF/UHF nach CCIR B/G.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
