Super Color 8062b
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1975 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 298887
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

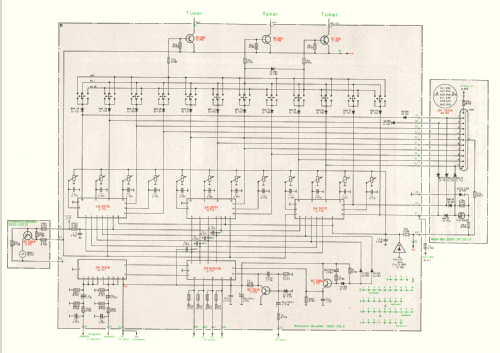

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A66-500X
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details

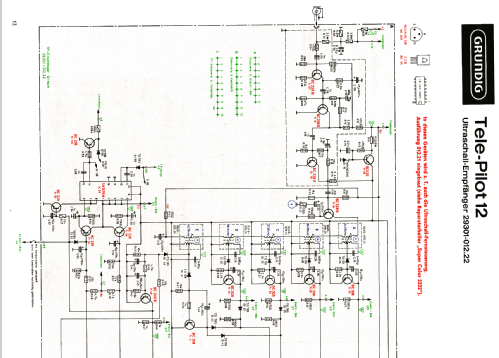

- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Color 8062b - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
66 cm Tisch Farbfernsehgerät mit Allbereich Tuner, Anschlüsse für Zusatzgeräte Zentralstecker für Grundig Diagnose Adapter, Kopfhöreranschluß an der Gerätefrontseite Gerätelautsprecher kann abgeschaltet werden.
- Literature/Schematics (2)

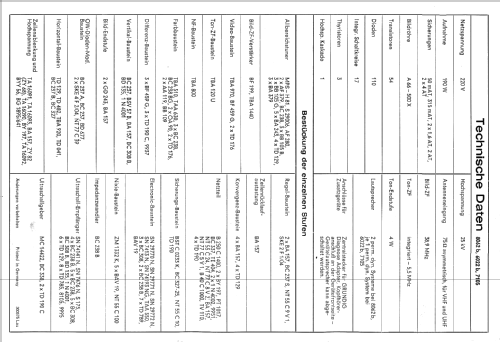

- -- Original-techn. papers.
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
