• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1977 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 307105

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

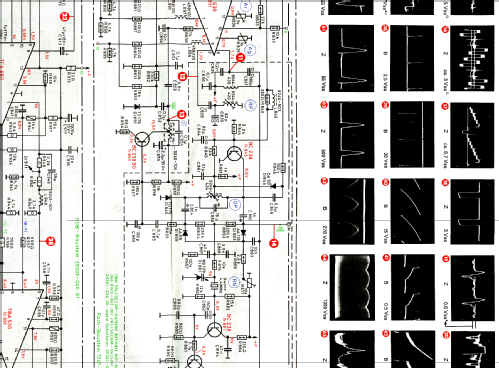

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A66-500X

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 9 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

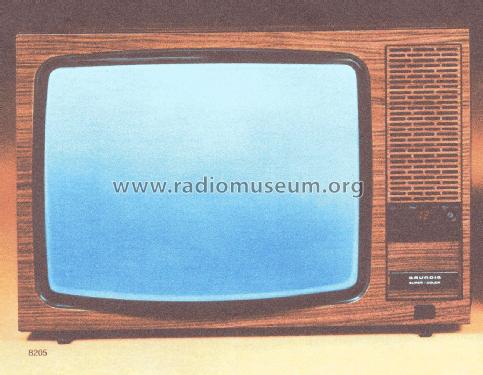

• Model: Super Color 8205 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 760 x 520 x 440 mm / 29.9 x 20.5 x 17.3 inch

• Notes

• 66 cm Tisch Farbfernsehgerät mit Allbereich- Tuner. Tele-Pilot 12 Grundig Tele- Spiele nachrüstbar. 10 Watt Konzertlautsprecher.

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
