• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1980 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 288575

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

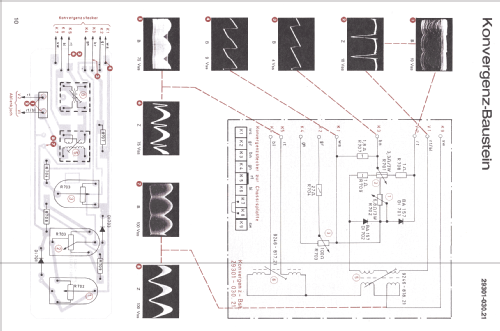

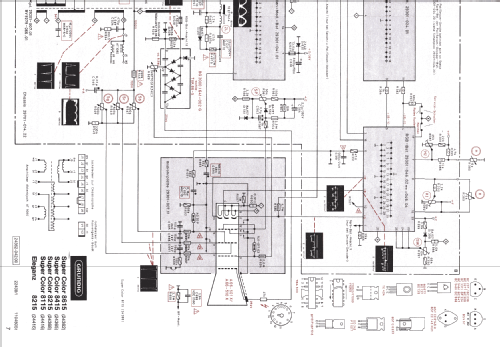

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A66-501X or A66-510X

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Super Color 8415 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Notes

• Farbfernsehempfänger 66 cm Inlinebildröhre und Kabeltuner, ähnlich Super Color 8215

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
