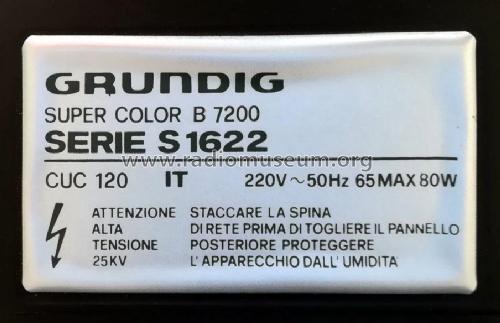

Super Color B7200 Serie S1622 Ch= CUC120
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1982 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 247677
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

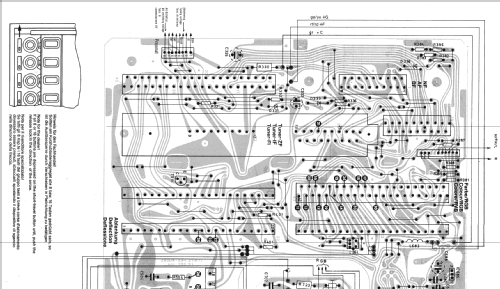

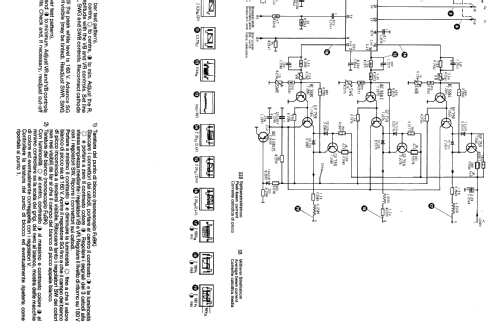

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: Super Color B7200 Serie S1622 Ch= CUC120 - Grundig Radio-Vertrieb, RVF,
- Notes
-
Grundig Super Color B 7200 mit Kabeltuner.
- Literature/Schematics (1)
- Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
