• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1983 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 200473

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Number of Tubes
• 1

• Valves / Tubes
• 370JMB22-TC03

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

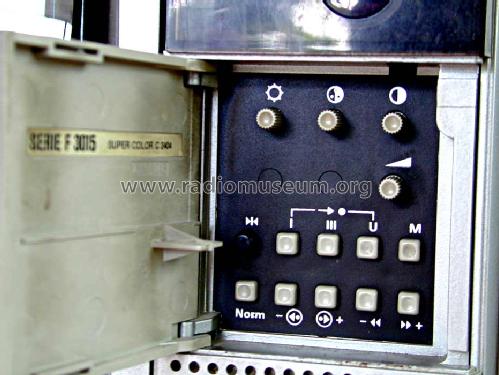

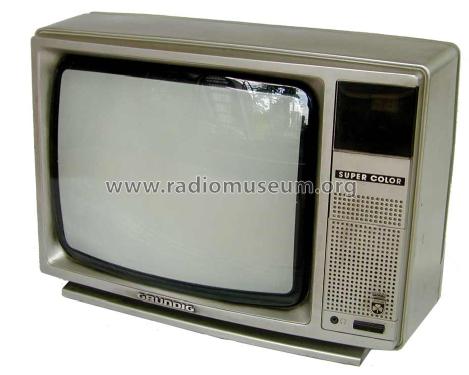

• Model: Super Color C2404 Serie F3015 Ch= CUC51KT - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 320 x 245 x 330 mm / 12.6 x 9.6 x 13 inch

• Notes
• Grundig Super Color C 2404, Serie F3015, Chassis: CUC51KT;
  36 cm PAL Farb TV mit elektronischem CCIR B/G VHF/UHF Kabeltuner, LED Kanal/Programmanzeige, IR Fernbedienung, optional Bildschirmtext Decoder.
  Zugehörige Fernbedienung: Tele-Pilot 380.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by a member from D. See "Data change" for further contributors.
