Super Color C7400 Serie F3022 Ch= CUC70KT
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1978 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 192723
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

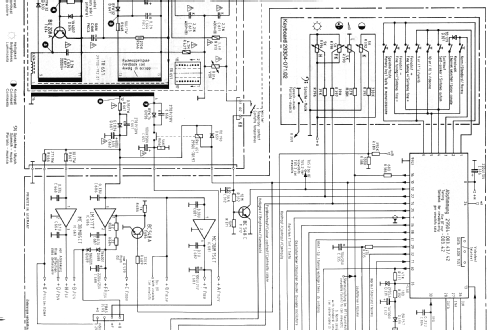

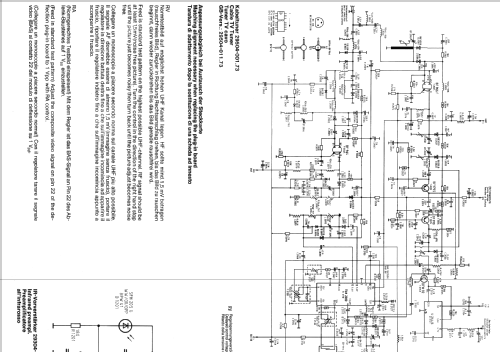

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A56-540X
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Color C7400 Serie F3022 Ch= CUC70KT - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 650 x 465 x 400 mm / 25.6 x 18.3 x 15.7 inch
- Notes
- Grundig Super Color C7400, Serie F3022, Ch= CUC70KT;
~56 cm PAL Color TV, VHF/UHF/Kabeltuner nach CCIR B/G, IR FB.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
