Super Color S6022

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1974 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 304134

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

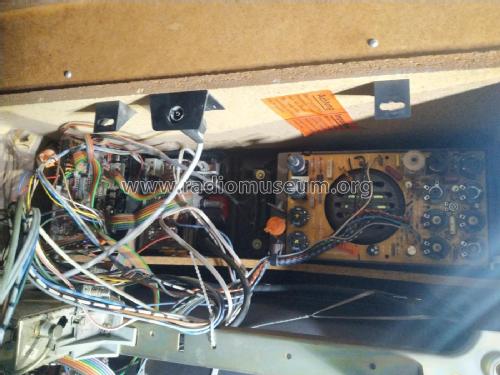

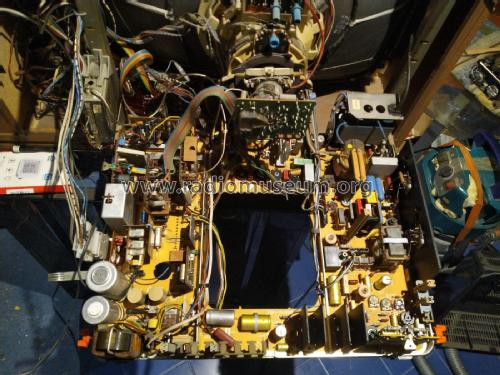

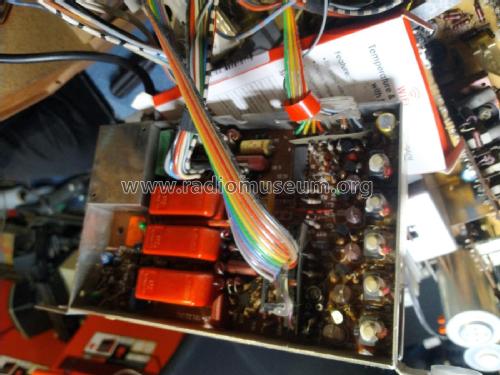

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• A66-410X ZM1332

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• FM Broadcast Band Only

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Color S6022 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 870 x 940 x 510 mm / 34.3 x 37 x 20.1 inch

• Notes

• 66 cm Standgerät mit Allbereichstuner, Multi- Modul- Baukasten- System. Drahtlose Ultraschall- Fernsteuerung Tele- Pilot 12. Digitale- Programmanzeige. Zentralstecker für Grundig Diagnose Adapter. Anschluss für Kopfhörer, Gehäuselautsprecher kann abgeschaltet werden.

• Net weight (2.2 lb = 1 kg)
• 51 kg / 112 lb 5.4 oz (112.335 lb)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
