Super Color W 8272
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1978 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 292381
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Q: Grundig, TI 1/78

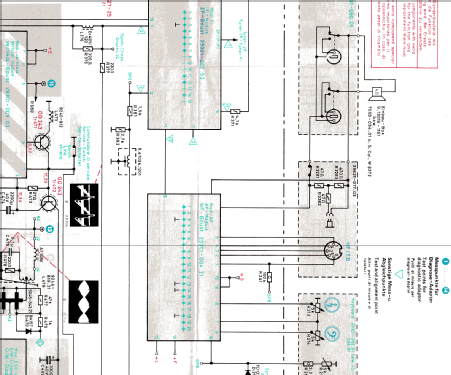

Bild aus Grundig Service Unterlagen
Q: Grundig TI, 1-78
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Color W 8272 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
66 cm Color- TV Tischgerät Uhrzeit ein- und ausblendbar, Anschlüsse für Kopfhörer und Tonbandgerät
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
