• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1974 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 76092

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

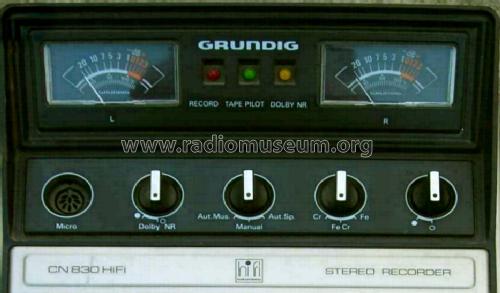

• Model: CN830TP Super HiFi - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 225 x 110 x 320 mm / 8.9 x 4.3 x 12.6 inch

• Notes
• Grundig Cassetten-Tonbandgerät CN830TP Super HiFi.
  Dolby System, Tape Pilot, CR-/FeCr-/Fe-Bandwahl, Bausteinsystem.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
