• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1982/1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89047

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 + 2 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

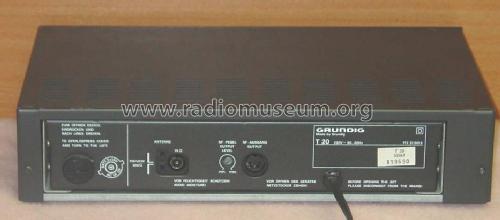

• Model: HiFi-Tuner T20 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 320 x 74 x 210 mm / 12.6 x 2.9 x 8.3 inch

• Notes

• Nur digitale Frequenzanzeige, aus der High Fidelity Serie. Gleicher Schaltplan wie MT200 - 2x 1,5V Batterien für Speicher bei ausgeschaltetem Gerät.

  Ausführung in schwarz oder silber.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Mentioned in
• -- Original prospect or advert (Grundig HiFi-Programm 82/83)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
