• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1985 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110600

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

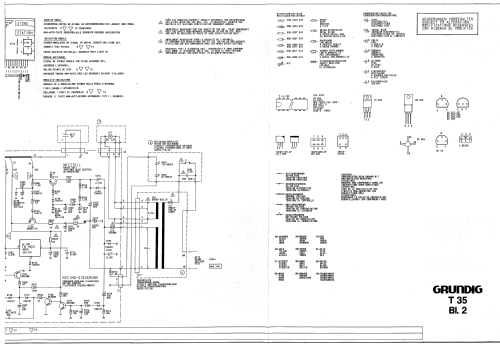

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: T35 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 350 x 75 x 265 mm / 13.8 x 3 x 10.4 inch

• Notes
• Nur digiale Frequenzanzeige, aus High Fidelity Serie, Synthesized Tuner, 19 Festsender-Speicher, 2× 1,5-V-Batterie notwendig für Speicher, schwarz- oder silberfarbig.

• Source of data
• -- Collector info (Sammler)
