• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1988

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162184

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

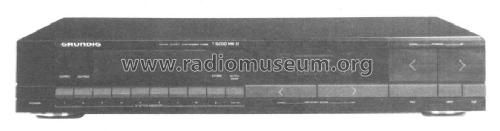

• Model: T8200 MK II - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 67 x 330 mm / 17.1 x 2.6 x 13 inch

• Notes
• Grundig T8200 MK II Tuner;
  UKW: 87,5 MHz - 108 MHz, MW: 522 kHz - 1611 kHz, LW: 153 kHz - 281 kHz.

• Source of data
• -- Original-techn. papers.

• Mentioned in
• - - Manufacturers Literature (Grundig Revue 89, HiFi-Serie 8000 MK II)

• Author
• Model page created by Daniel Doll. See "Data change" for further contributors.
