- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1957–1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2097
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
mein Modell
mein Modell
mein Modell

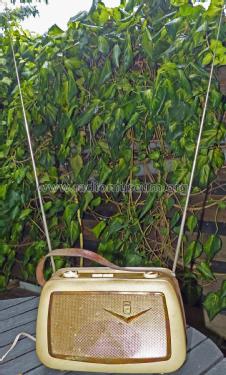

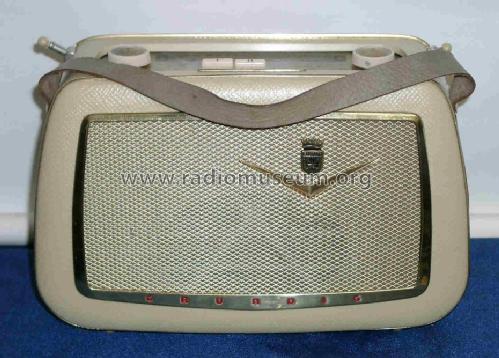

rechte Antenne fehlt.

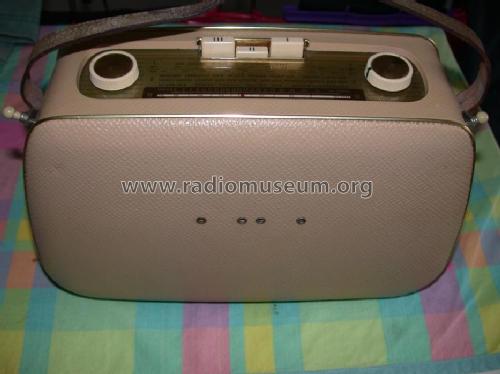

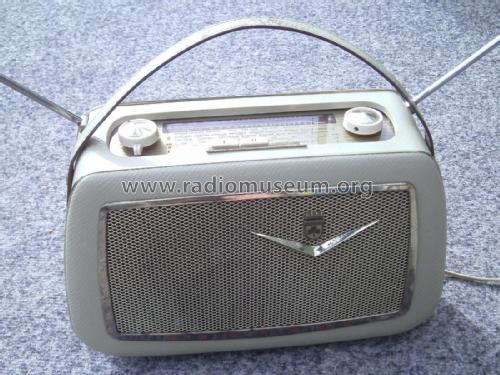

Teddy-Boy restauriert. Ohne Lederriemen

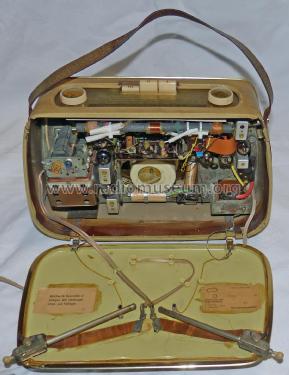

UKW Tuner offen
UKW-Tuner Offen
Foto: Werner Scholz

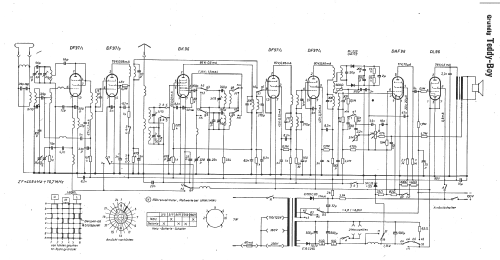

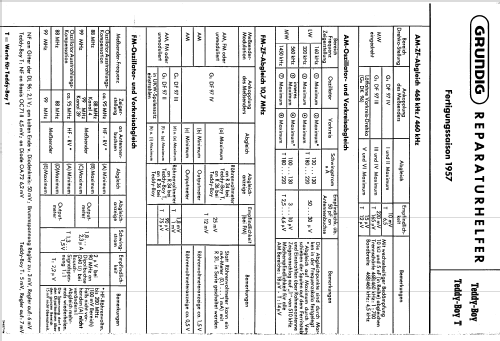

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- E15C250/E150C30 ST.1.35-55 OA172 OA172
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110; 160; 220 / 2×1,5 & 100 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.12 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Teddy-Boy - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 310 x 190 x 120 mm / 12.2 x 7.5 x 4.7 inch
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Price in first year of sale
- 249.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange Schaltungen der Funkindustrie, Buch 4
- Other Models
-
