• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1977

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 118378

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Dry Batteries / 5 x 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Tele-Pilot 16 29622-013.01/.21 - Grundig Radio-Vertrieb, RVF,

• Dimensions (WHD)
• 65 x 30 x 125 mm / 2.6 x 1.2 x 4.9 inch

• Notes
• Infrarot-Fernsehfernbedienung für 25 Funktionen, davon 16 Programmtasten.
  2 Ausführungen:

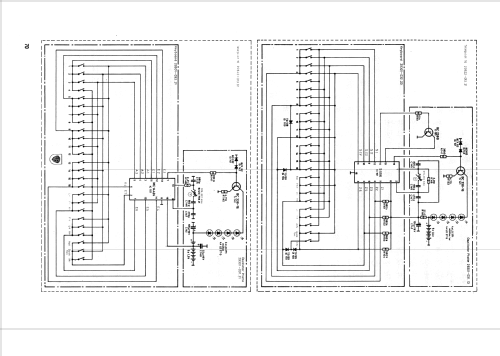

  29622-013.01 mit 1 Transistor + IC MC14424
  oder
  29622-013.21 mit 2 Transistoren + IC S556.

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Mentioned in
• - - Manufacturers Literature (Grundig Technisches Jahrbuch 1991)

• Literature/Schematics (1)
• -- Original-techn. papers.
