• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1976/1977

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 118379

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

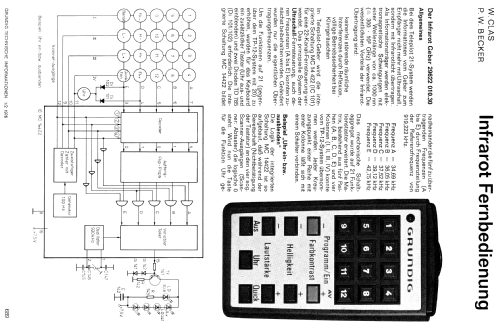

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Dry Batteries / 5 x 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Tele-Pilot 21 29622-010.30 /.40 /.50 - Grundig Radio-Vertrieb, RVF,

• Notes

• Infrarot-Fernsehfernbedienung für 21 Funktionen, davon 12 Programmtasten.
  3 Ausführungen:

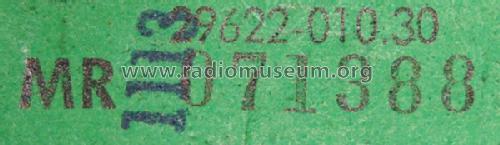

  29622-010.30 mit 1 Transistor + IC MC14422
  29622-010.40 mit 1 Transistor + IC SN29920N
  29622-010.50 mit 2 Transistoren + IC S556.

  Empfängerseitig in Verbindung mit:
  IR-Vorverstärker 29301-050.01 und Telepilot Empfängerbaustein 29301-047.01.

• Mentioned in
• - - Manufacturers Literature (Grundig Technisches Jahrbuch 1991)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
