- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1970–1973
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 92677
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

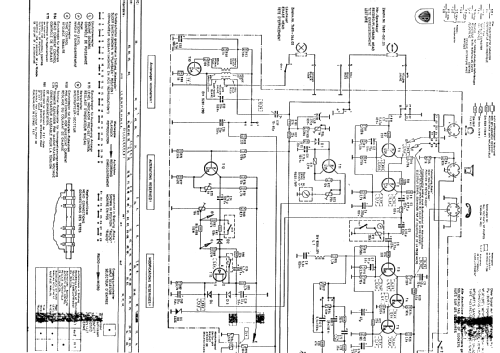

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-115; 127; 220-230; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: TK126U - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 385 x 155 x 285 mm / 15.2 x 6.1 x 11.2 inch
- Notes
- Unterschied zum TK126 = 4 Betriebsspannungsmöglichkeiten. Dem Gerät ist für den 60-Hz-Betrieb eine Riemenscheibe und eine Antriebsscheibe mit kleinerem Durchmesser beigepackt.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
