• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965/1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 311837

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECL86 EM84

• Number of Transistors

• Semiconductors
• B250C75 E25C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

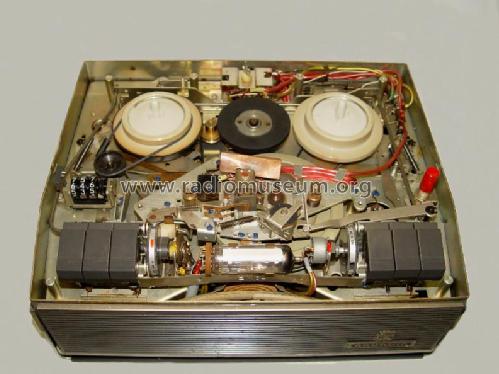

• Model: TK17L [h] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 340 x 175 x 270 mm / 13.4 x 6.9 x 10.6 inch

• Notes

• Ausführung "h" mit Motor 7882-132. Siehe auch Grundig TK17L de luxe g mit anderem Motor.

  • Mono-Vierspur
  • Bandgeschwindigkeit 9,5 cm/s
  • Spulen-Ø 15 cm.
  • Bandzählwerk
  • Stromverbrauch 48 Watt bei 50Hz

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
