TK19 a

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1961–1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 24608

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

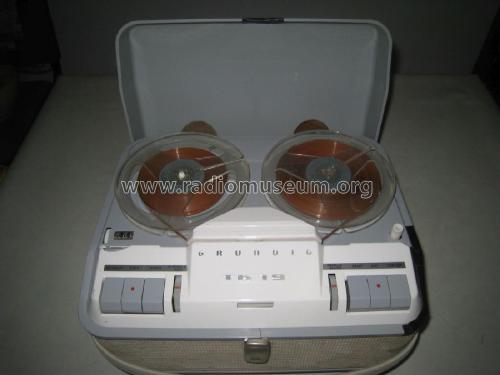

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC81 EL95 EM84

• Number of Transistors

• Semiconductors
• E25C5 B250C75

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• from Radiomuseum.org
• Model: TK19 [a] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 350 x 175 x 290 mm / 13.8 x 6.9 x 11.4 inch

• Notes

• Grundig Tonbandkoffer 19

  • Halbspur-MONO
  • Nur manuelle Aussteuerung
  • Bandgeschwindigkeit 9,5 cm/s
  • Spulen-Ø 15 cm.
  • Stromverbrauch: 55W bei 50Hz
  • Eingebaute Band-Klebeschiene
  • Standard-Mikrofon: GDM310.

  Ähnliche Modelle:

  • TK19A Automatic [a] - mit Aussteuerungsautomatik
  • TK19A Automatic U - zusätzlich umschaltbar auf 60Hz
  • TK19L Automatic [k] - mit Automatik, in neuem Gehäuse

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 385.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Mentioned in
• -- Original-techn. papers.
