TK32

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1958–1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 22038

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

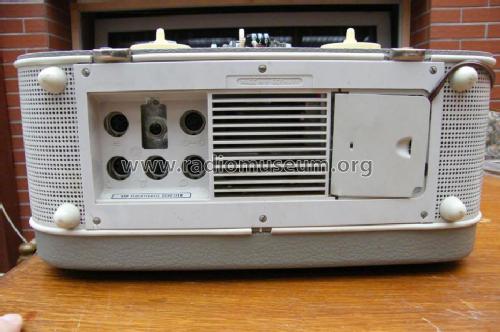

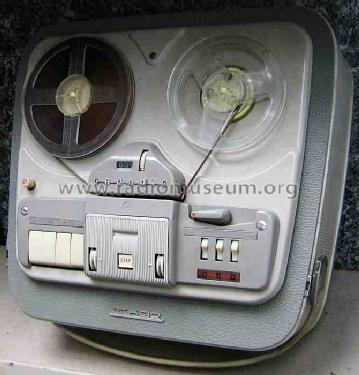

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC81 EL95 EL84 EM84

• Number of Transistors

• Semiconductors
• E25C5 B250C100 B30C600

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

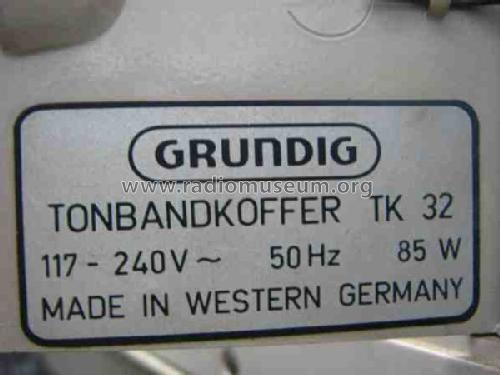

• Power type and voltage
• Alternating Current supply (AC) / 117; 150; 200; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: TK32 - Grundig Radio-Vertrieb, RVF,

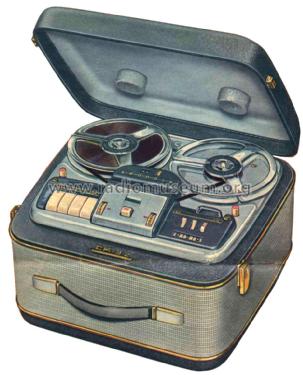

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 230 x 400 mm / 16.1 x 9.1 x 15.7 inch

• Notes
• Zweispur; 4,75/9,5 cm/s. Spulen-Ø 18 cm.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 520.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Literature/Schematics (1)
• -- Original-techn. papers.
