- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1958–1962
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 314899
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: TK35/U - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 230 x 420 mm / 18.1 x 9.1 x 16.5 inch
- Notes
-
Export-Modell für die USA des Grundig Tonbandgerätes TK35. Daten sinngemäss von dort übernommen.
Zweispur; 4,75/9,5/19 cm/s. Spulen-Ø 18 cm.
Gehäuse: Unten Holzgehäuse bezogen, oben PVC.
- Net weight (2.2 lb = 1 kg)
- 15.5 kg / 34 lb 2.3 oz (34.141 lb)
- Source of data
- - - Manufacturers Literature
- Mentioned in

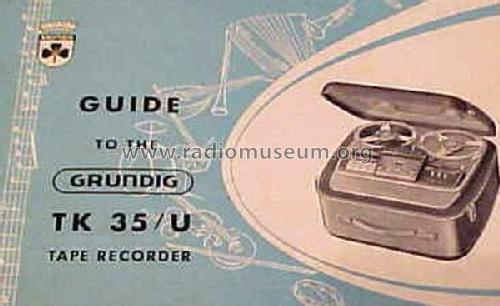

- - - Manufacturers Literature (Guide to the Grundig TK 35/U Tape Recorder)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
