TK41

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962–1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 25963

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

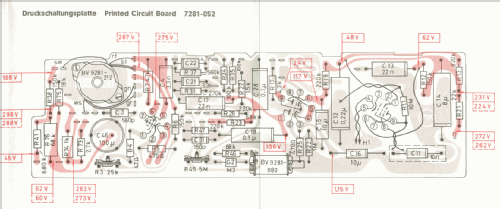

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF86 ECC81 ECC83 ELL80 EM84 EL95

• Number of Transistors

• Semiconductors
• M3 B250C100

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 7 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: TK41 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 195 x 380 mm / 16.1 x 7.7 x 15 inch

• Notes
• Zweispur; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s. Spulen-Ø 18 cm. Gegentaktendstufe.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 728.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
