• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1975–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 89021

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

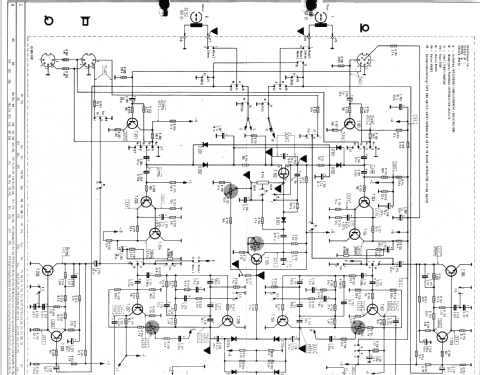

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

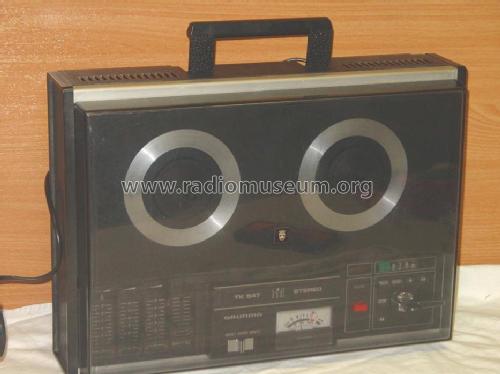

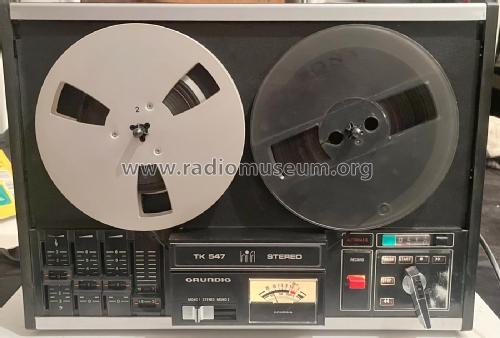

• Model: TK547 HiFi - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 418 x 154 x 300 mm / 16.5 x 6.1 x 11.8 inch

• Notes
• 2 Ausführungen: TK547 und TK547U mit geändertem Netztrafo-Motor für 220 und 240 Volt.
  Stereo-4-Spur, Bandgeschwindigkeiten: 9,5/19 cm/s, 2 Tonköpfe, 1 Motor; Spulen-Ø 18 cm. Stereo-NF-Verstärker mit 2 Endstufen je 7 W (Musik).

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977 (und 1977/78)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
