• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1955–1958

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 20982

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC81 EL42 EM85

• Number of Transistors

• Semiconductors
• E25C5 B250C30

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - For headphones or amp. / Ø 10 cm = 3.9 inch

• Material
• Wooden case

• from Radiomuseum.org

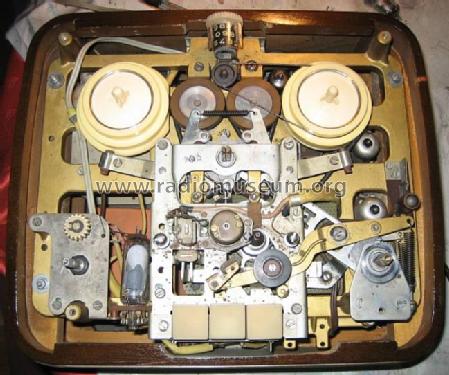

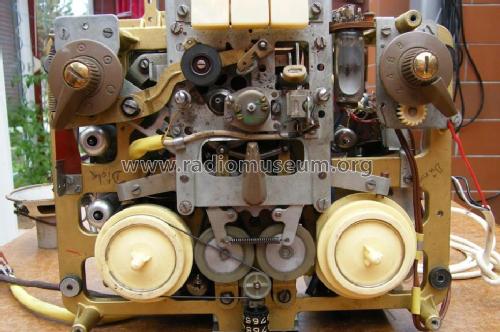

• Model: TM5 - Grundig Radio-Vertrieb, RVF,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 360 x 170 x 300 mm / 14.2 x 6.7 x 11.8 inch

• Notes
• Technische Daten wie TK5, jedoch ohne Endstufe.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 395.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Literature/Schematics (1)
• -- Original-techn. papers.
