- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1961/1962
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 24213
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Aus Original-Bedienungsanleitung!
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 117; 150; 200; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

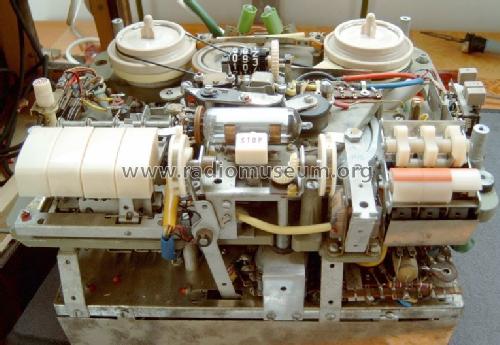

- Model: TM64 - Grundig Radio-Vertrieb, RVF,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 350 x 300 x 220 mm / 13.8 x 11.8 x 8.7 inch
- Notes
- Vierspur-Stereo; Bandgeschwindigkeiten 9,5/19 cm/s, Spulen-Ø 18 cm.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 665.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Mentioned in
- -- Original-techn. papers.
