• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1955/1956

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 20172

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF804 ECC81 EL42 EL42 EM71

• Number of Transistors

• Semiconductors
• E052/2 B250C90 B25C450

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 165; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 2.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: TK15/3D - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 380 x 220 x 350 mm / 15 x 8.7 x 13.8 inch

• Notes
• Grundig Tonbandkoffer TK15/3D.
  Zweispur; 4,75/9,5 cm/s. Spulen-Ø 15 cm. Aufnahme und Wiedergabe in beiden Richtungen; Anschluß für elektrische Fernbedienung.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 698.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Literature/Schematics (1)

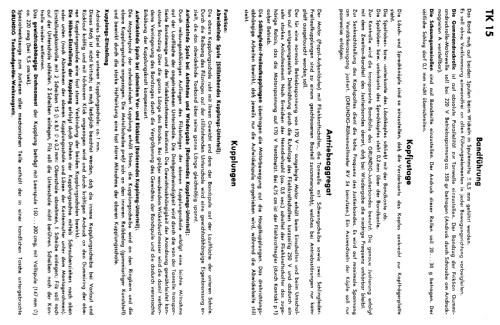

• -- Original-techn. papers.
