Tonbandgerät TK23 Automatic U
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1964/1965
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 202111
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

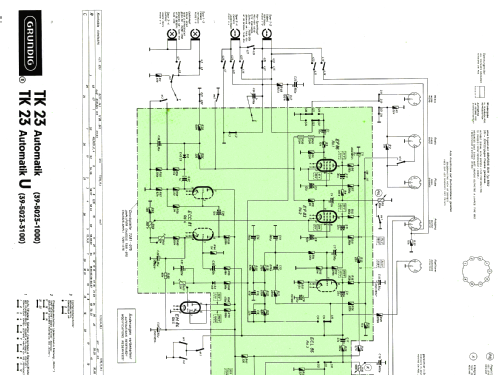

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Tonbandgerät TK23 Automatic U - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 350 x 175 x 290 mm / 13.8 x 6.9 x 11.4 inch
- Notes
- Vierspur, Mono-Aufnahme und Wiedergabe, Bandgeschwindigkeit 9,5 cm/s, Frequenzbereich 40-12000 Hz
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Mentioned in
- Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
