• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1956/1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 20983

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC81 EL42 EM85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 165; 220; 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

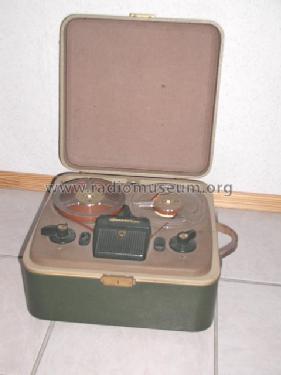

• Model: TR3 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 340 x 150 x 290 mm / 13.4 x 5.9 x 11.4 inch

• Notes
• Wie Grundig TR5, jedoch ohne Drucktasten-Eingangswähler und Endabschalter.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 399.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 5

• Mentioned in
• Funk-Technik (FT) (9/1956, S. 253, 254 / Beschreibung, Schema)
