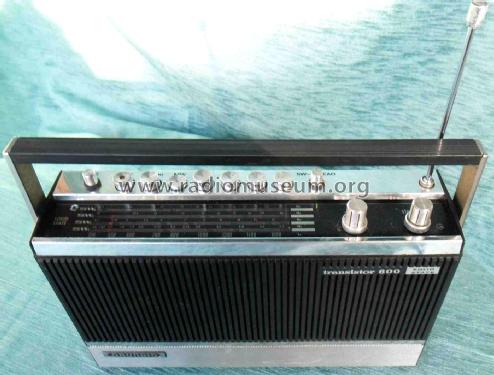

Transistor 600a solid state

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Year
1970–1973

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
28189

- alternative name: Grundig Portugal || Grundig USA / Lextronix

Schematics

Transistor 600a solid state; Grundig Radio- (ID = 1267721) Radio — Grundig Radio- Transistor 600a solid state (3)

Transistor 600a solid state; Grundig Radio- (ID = 1267723) Radio — Grundig Radio- Transistor 600a solid state (3)

Transistor 600a solid state; Grundig Radio- (ID = 1267726) Radio — Grundig Radio- Transistor 600a solid state (3)

Transistor 600a solid state; Grundig Radio- (ID = 1267732) Radio — Grundig Radio- Transistor 600a solid state (3)

Transistor 600a solid state; Grundig Radio- (ID = 1267729) Radio — Grundig Radio- Transistor 600a solid state (3)

Transistor 600a solid state; Grundig Radio- (ID = 1267718) Radio — Grundig Radio- Transistor 600a solid state (3)

Transistor 600a solid state; Grundig Radio- (ID = 1708293) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 481199) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 481200) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 481201) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 481202) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1362956) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1362957) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1362958) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1708294) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1708295) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1708296) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903804) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903805) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903806) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903807) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903808) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903809) Radio — Grundig Radio- Transistor 600a solid state (1)

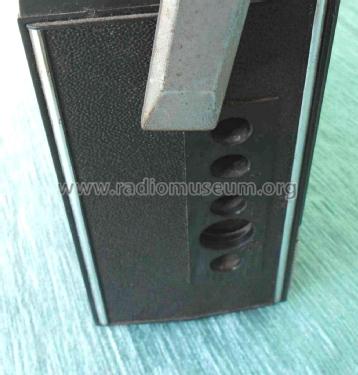

Transistor 600a solid state; Grundig Radio- (ID = 1903810) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903811) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903812) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903813) Radio — Grundig Radio- Transistor 600a solid state (1)

Transistor 600a solid state; Grundig Radio- (ID = 1903814) Radio — Grundig Radio- Transistor 600a solid state (1)

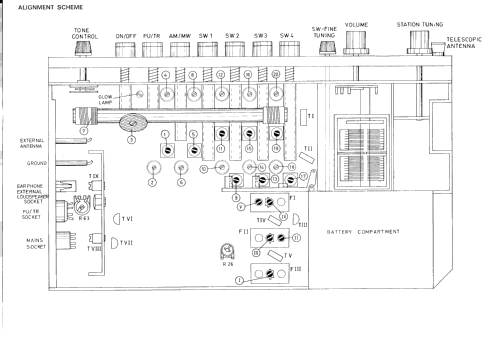

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
9

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 460 kHz

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast plus more than 2 Short Wave bands.

Power type and voltage
Batteries / addl. power jack / 6 × 1,5 / 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
1.5 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Transistor 600a solid state - Grundig Radio-Vertrieb, RVF,

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
300 x 180 x 80 mm / 11.8 x 7.1 x 3.1 inch

Notes
Vier Kurzwellenbereiche. Netzbetrieb mit zusätzlichem Netzteil möglich.

Net weight (2.2 lb = 1 kg)
2.4 kg / 5 lb 4.6 oz (5.286 lb)

External source of data
Erb

Source of data
Handbuch VDRG 1970/1971

Literature/Schematics (1)
-- Original-techn. papers.
