• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973–1975

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 103778

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• M6529FZP

• Number of Transistors
• 17

• Semiconductors
• AF279 AF280 AF109R AF106 BF199 TBA440 BF457 TBA120S SN76001 BC238 BCY85 TBA920 ON328 BD135 BD136 BD137 AU113 BC232 PT2014 BB105 BA182 TD129 1N4001 AY102 AY105K BA159 TD041 TAA550 B25C2200

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Triumph 1415 Super Electronic - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 300 x 260 mm / 13 x 11.8 x 10.2 inch

• Notes

• 36-cm-Bildröhre; 7 ICs; VHF/UHF; externe Stromversorgung (12 V/20 W) möglich. Triumpf 1415 identisch mit Triumph 1215, jedoch mit 35-cm Bildschirm. Gehäusefarben weiß, gelb oder rot. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

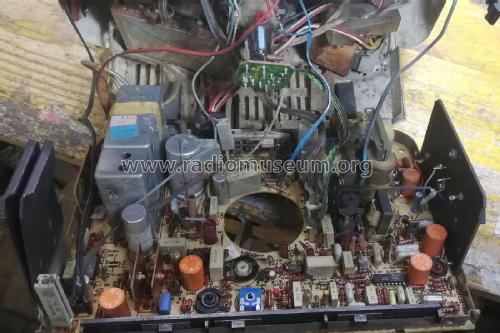

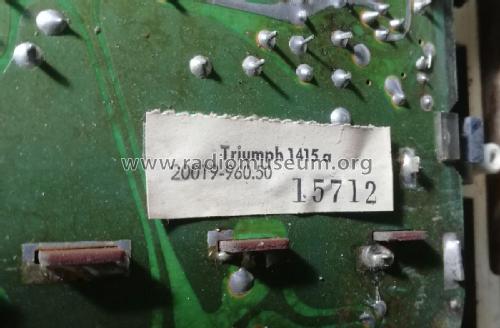

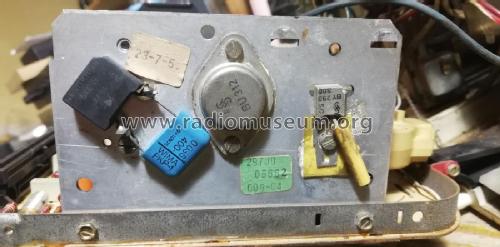

  • Der Nachfolger Triumph 1415a hat eine geänderte Horizontalenstufe und verwendet den Transistor BU312 mit der Dämpfer-Diode SKE4F2/04.
  • La variante "a" usa transistor finale orizzontale e diodo Damper al silicio ( BU312 e SKE4F2/04 ) rispetto al modello base che impiega semiconduttori al Germanio.
  • The "a" variant uses horizontal final transistor and silicon damper diode (BU312 and SKE4F2/04) compared to the basic model which uses Germanium semiconductors.

• Net weight (2.2 lb = 1 kg)
• 8.1 kg / 17 lb 13.5 oz (17.841 lb)

• Source of data
• Handbuch VDRG 1974/1975

• Literature/Schematics (1)
• -- Original-techn. papers.
