Triumph 1426UM

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1976 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 248402
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Line / Batteries (any type) / 220/ 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
  • Power out
  • 2 W (2.2 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Triumph 1426UM - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 310 x 280 mm / 15.7 x 12.2 x 11 inch
  • Notes

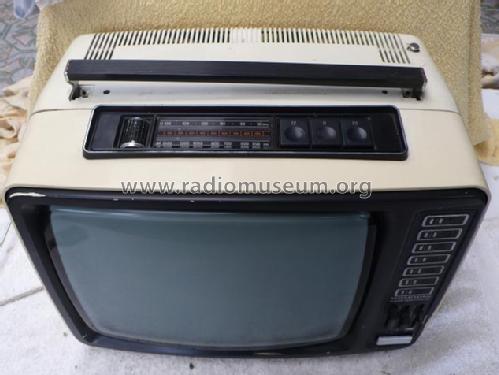

  • Grundig 35cm Portable TV mt UKW und MW Rundfunkteil Modell Triumph 1426 UM.
    35cm Panorama-Sicherheitsbildröhre
    7 Programmwahlsensoren mit elektronischer Amzeige.
    Anschlüsse für Klein-/Kopfhörer, Infrarot-Hör-Set, Tonband und Außenantenne.
    Kunststoffghäuse in Weiss, Gelb oder Rot.
    Siehe auch:
    Grundig Triumph 1452 (wie Triumph 1426UM, aber ohne Rundfunkteil.)

  • Net weight (2.2 lb = 1 kg)
  • 9.8 kg / 21 lb 9.4 oz (21.586 lb)
  • Price in first year of sale
  • 10,000.00 pte
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
