• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973/1974

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 129115

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

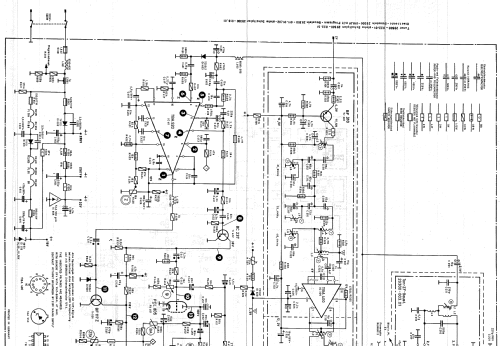

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• PL95 PCL805 PL504 PY88 A44-120W

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Triumph Super Electronic 1712UE - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 410 x 310 mm / 16.9 x 16.1 x 12.2 inch

• Notes
• 44 cm Portable, 8 IC´s, 29 Dioden, VHF/UHF-Tuner, beleuchtete Programmanzeige, Fernregler II.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Mentioned in
• -- Original-techn. papers. (Weiler Angebot 1973/74)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
